RAIL ROAD EXCAVATORS WITH EXTRA BONUSES

When ordering two-way excavator ATLAS (1604ZW or 1404ZW) from 1.1. until 30.6.2020 you get the following advantages with the machine:

1. Offer advantageous financing

2. Extended warranty - 4 years or 6000 Mth

3. Free service up to 6 000 Mth (work and transport of service mechanic)

4. Lending of spare machine for FREE in case of outage due to breakdown longer than 3 days

5. Post-warranty service 560 CZK / hour, free shipping

6. Onset of service within 12 hours and removal of defects within 48 hours of failure report

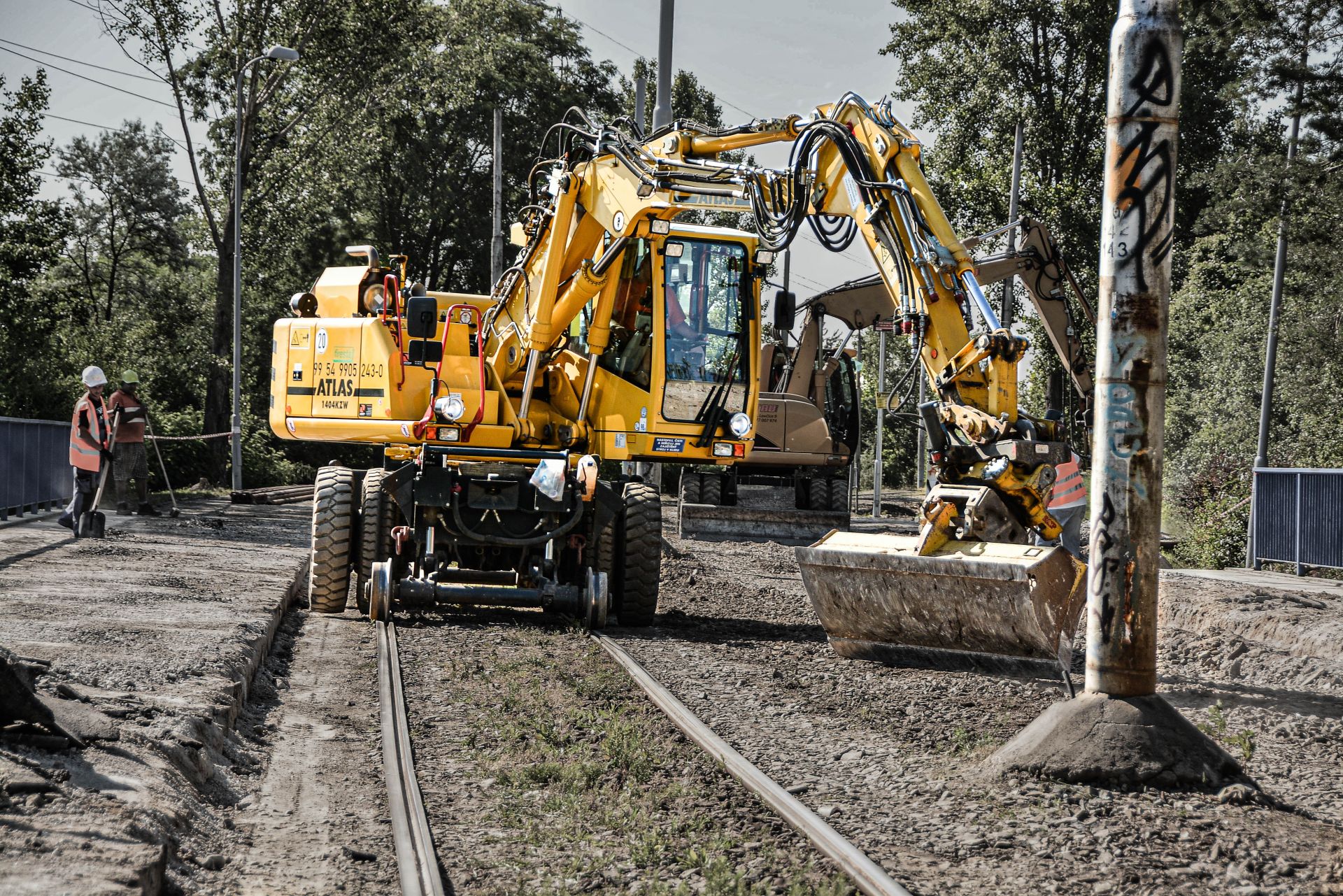

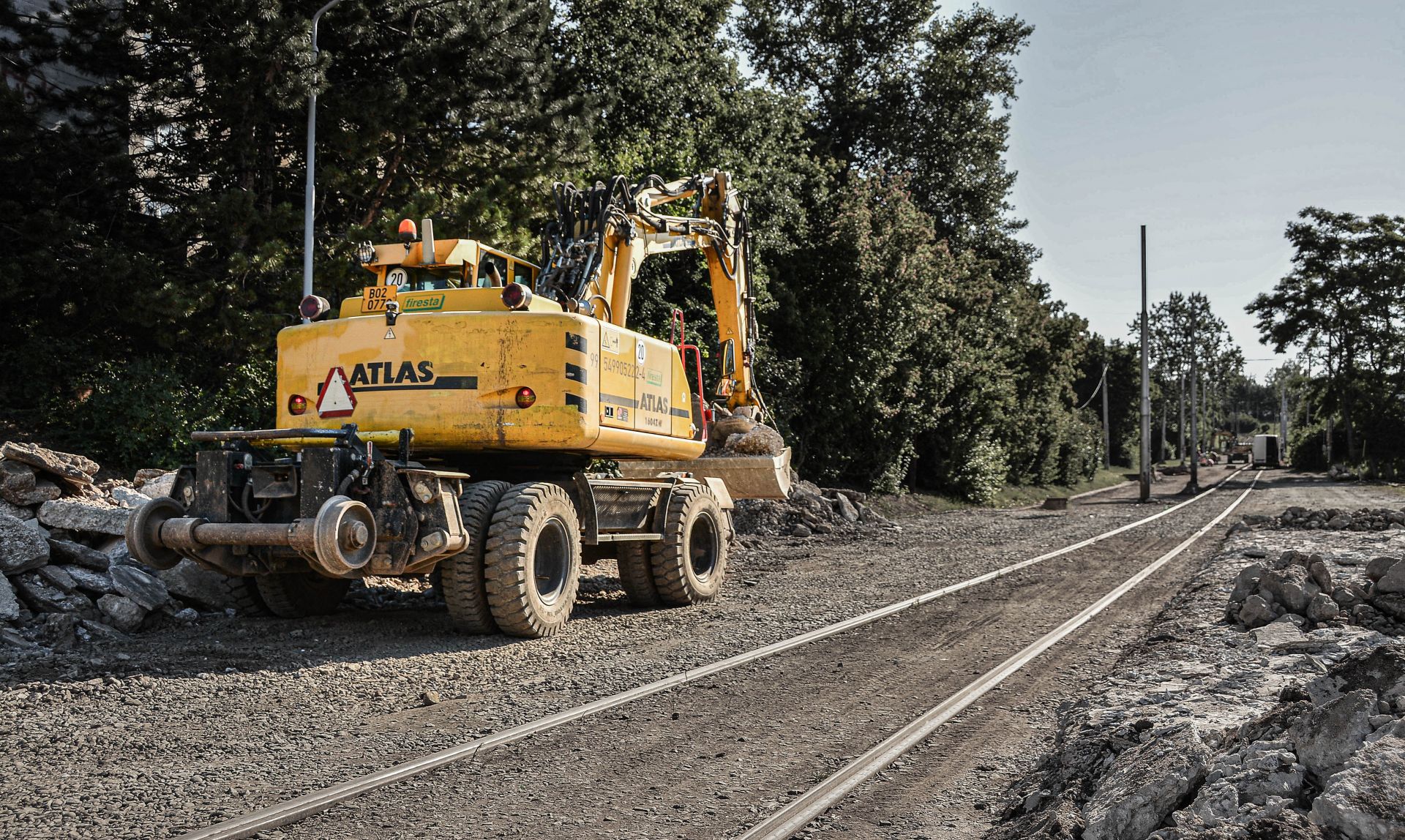

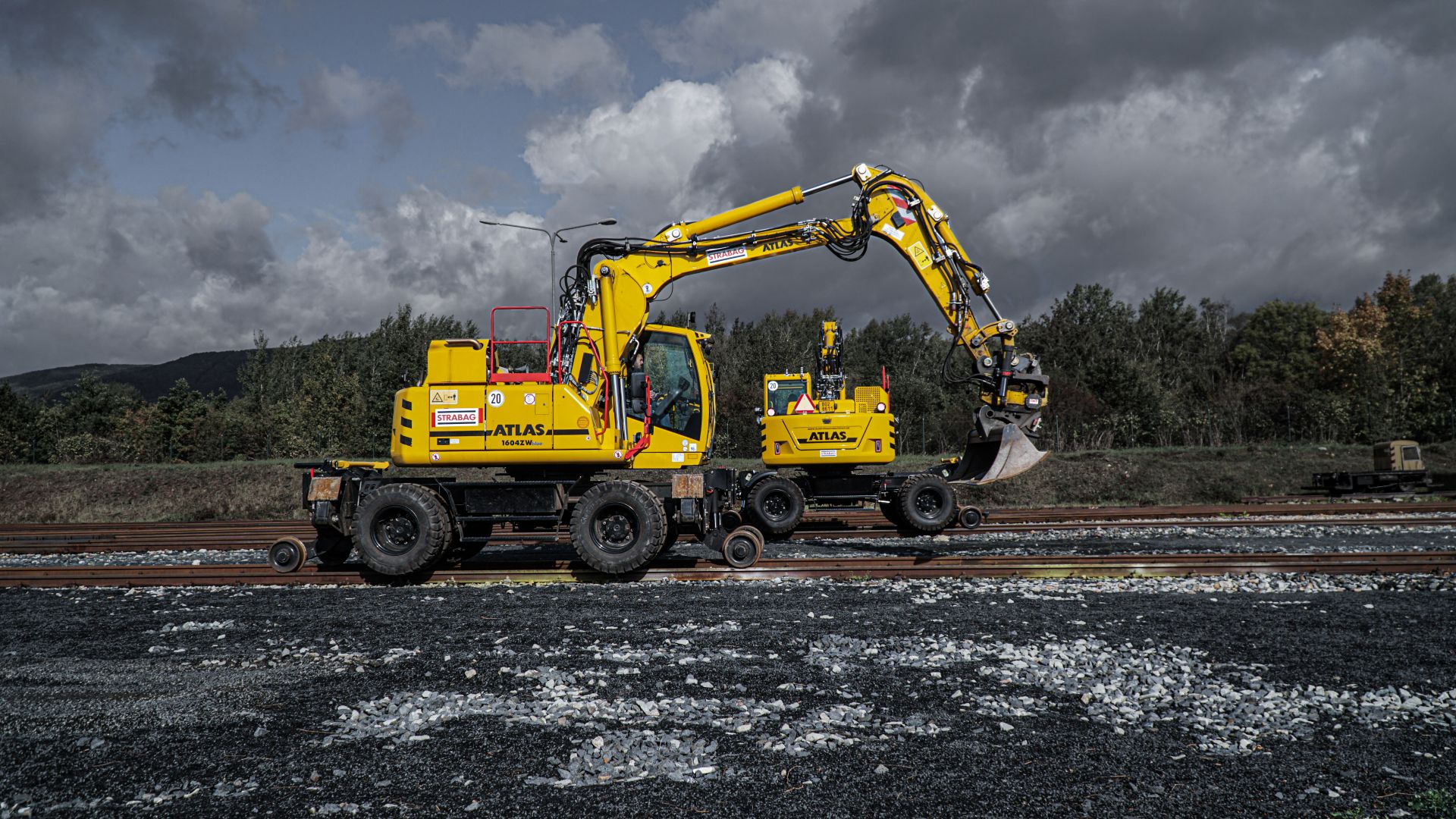

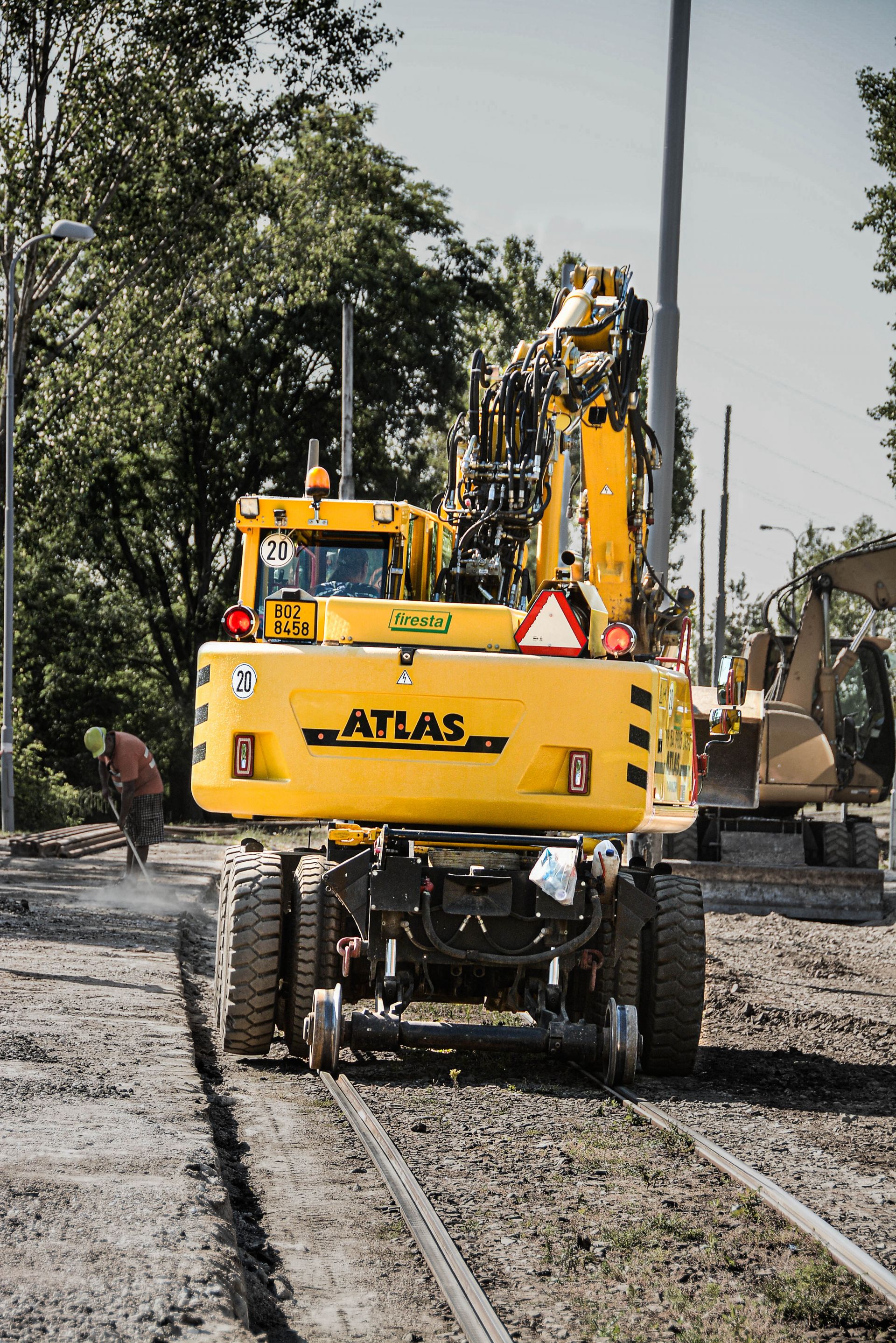

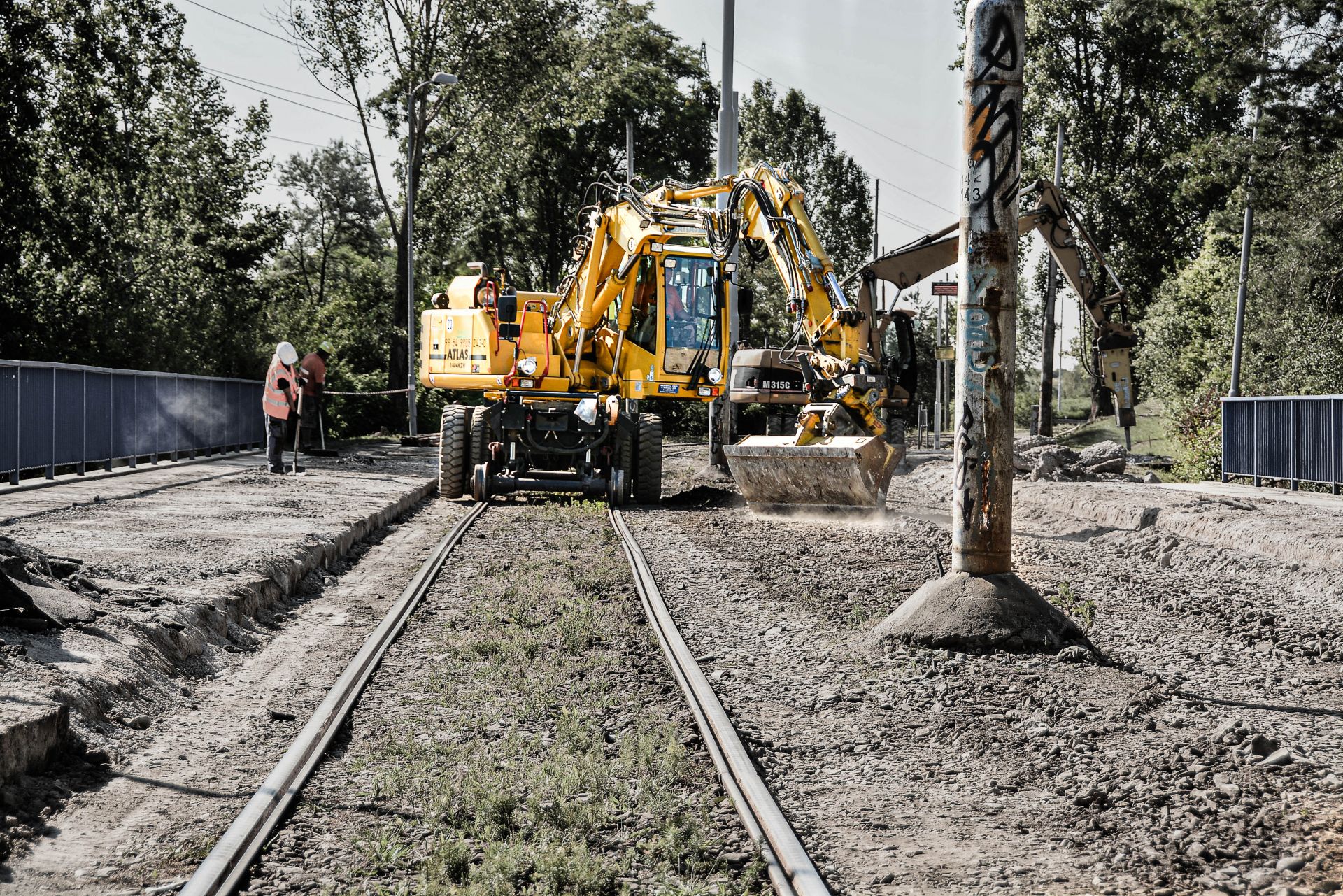

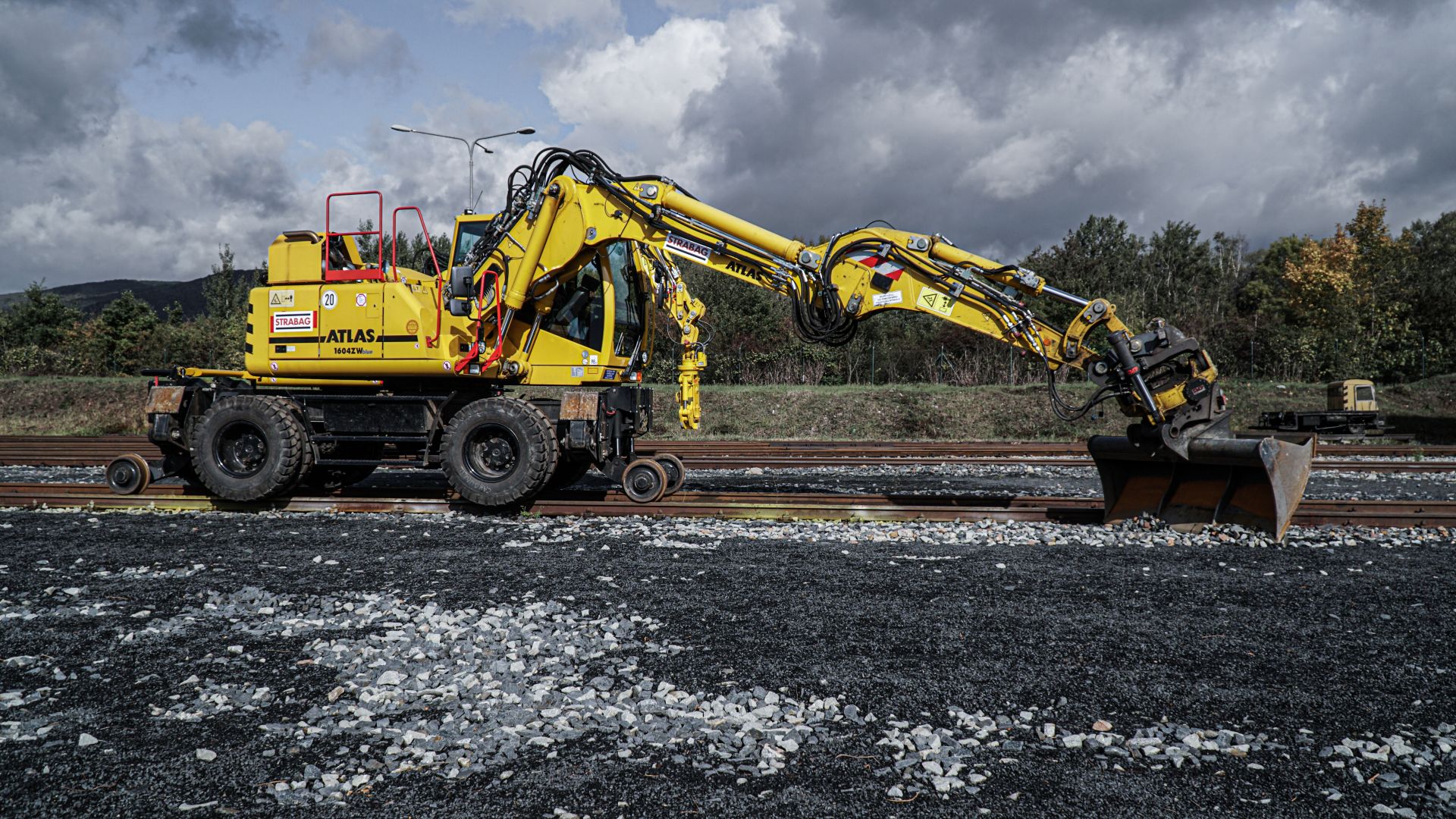

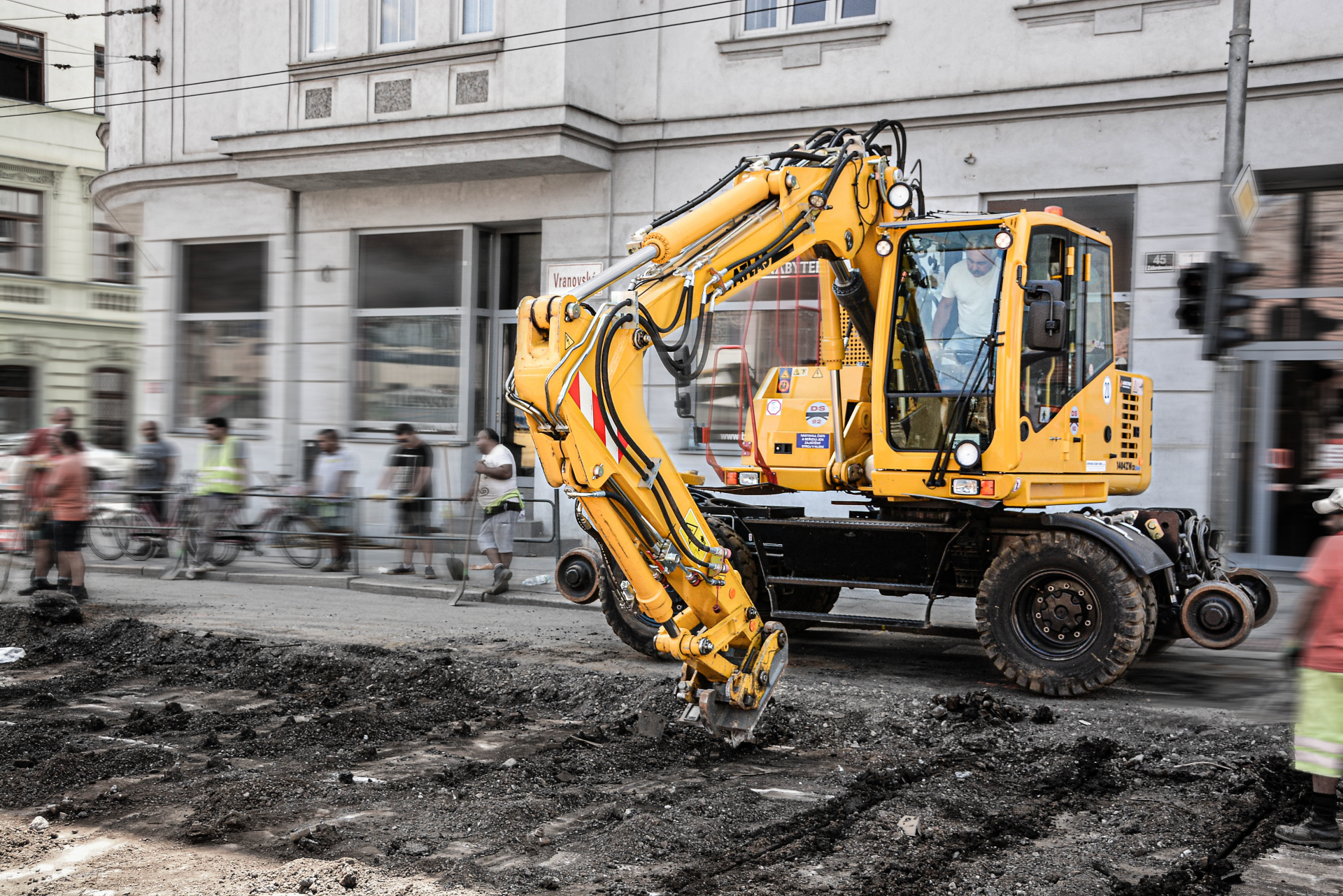

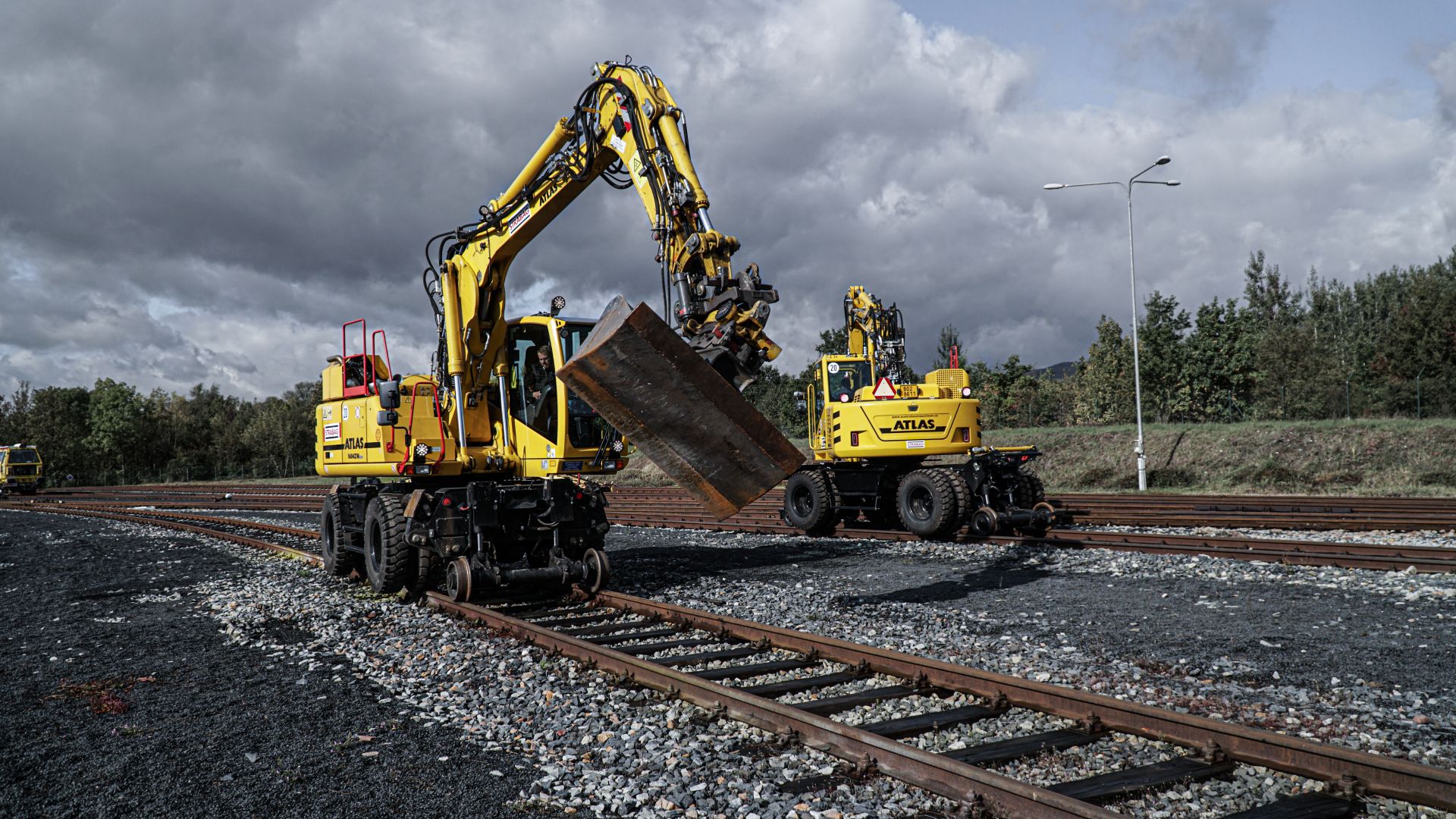

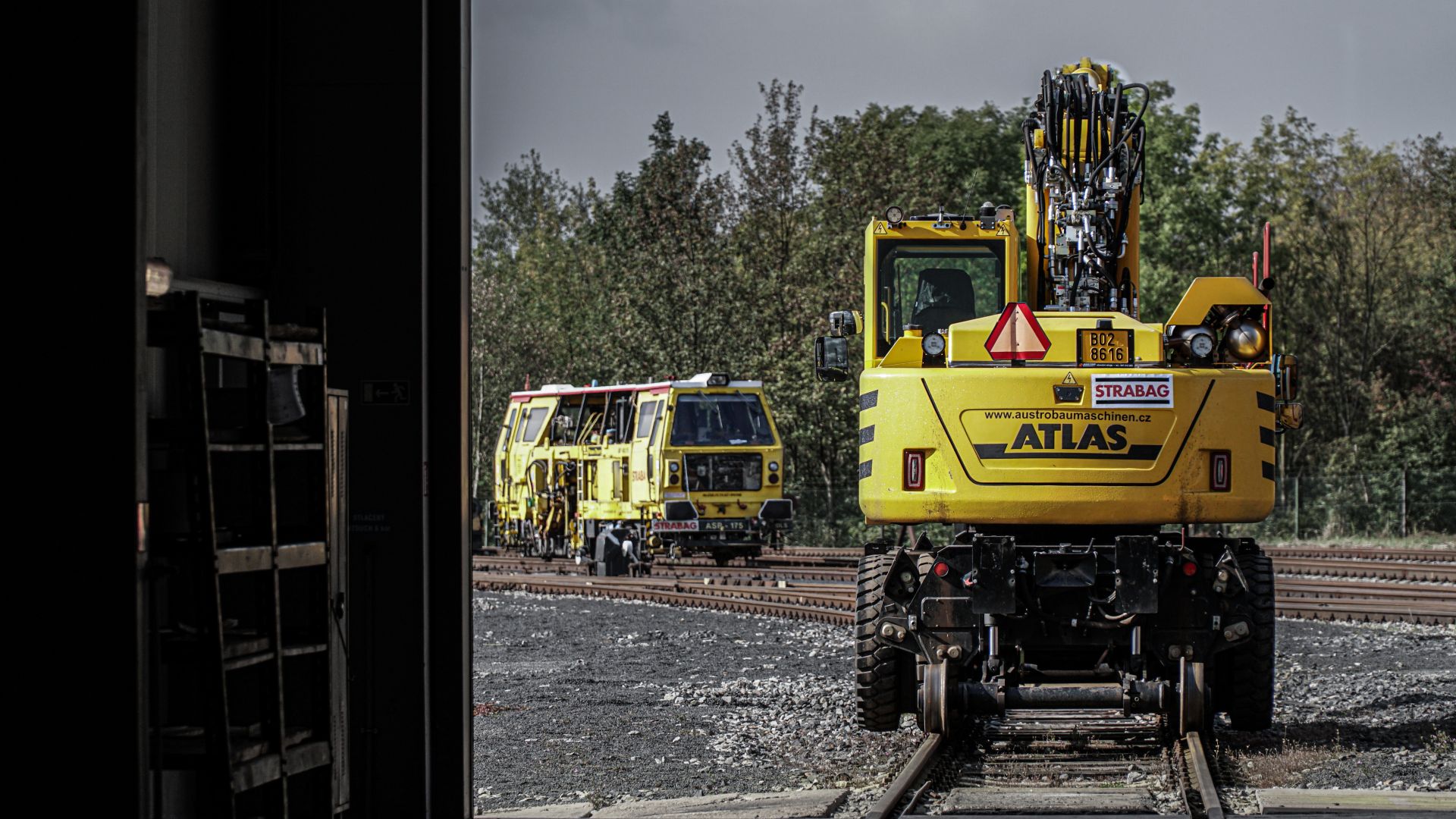

The ATLAS two-way excavator combines the optimum technology of the mobile excavator with the latest knowledge for rail use. High-strength materials, high productivity and low operating costs. Excavator for the harshest construction site conditions and the best guarantee of peak performance.

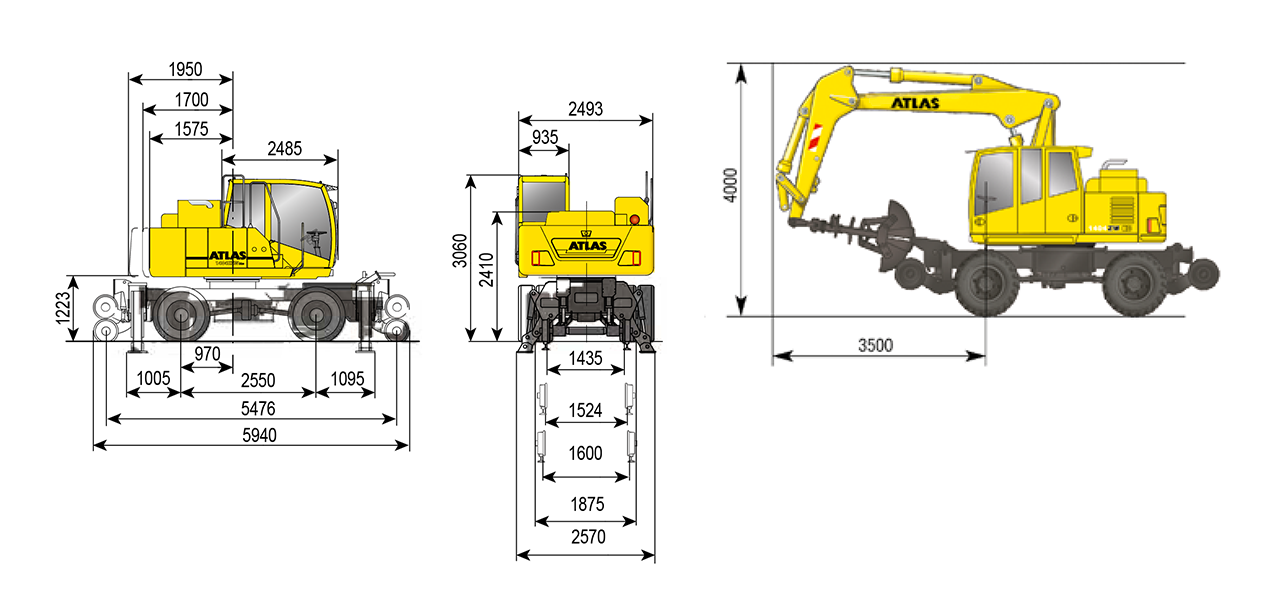

Specifications

Shortened stern with a turning radius of less than 2000 mm
Track gauge 1000 and 1435 mm
Rear turning radius: 1575 and 1700 mm
Speed ​​of work

The required rail guidance pressures are adjusted automatically when railed, without any external adjusting screws to adjust the wheel tire pressure on the rails.
AWE 4 technology makes driving and responsive, proportional control of all movements regardless of load.
Front and rear wheels can be operated independently (not with friction wheel)
Climbing and rolling off the tracks is simple.
Tractive force

The enormous power makes it possible to use the two-way excavator as a shunting locomotive. Both 1404 ZW and 1604 ZW models are approved for unladen trailer mass of 39,683 kg and 119,050 kg of trailer braked.
Saving space - especially where it is tight
The rear turning radius is ultra-short.
The 1404 ZW with the smallest rear turning radius on the market of 1575 mm is suitable for space-limited rails.
Performance

Deutz turbocharged engines provide fast and powerful movements, powerful powertrain, short duty cycles and dynamic performance development.
Visibility and cab comfort

The 2-seater cab has an excellent all-round view.
The optimal arrangement of the controls ensures unlimited visibility of the work equipment.
The rear compartment can be monitored by camera and display.
The cab is very well insulated from vibrations.
Low sound pressure level due to high-quality sound insulation.
The driver's seat with air suspension can be individually adjusted in all directions, including the lumbar support.
The narrow steering column provides excellent visibility to the work equipment and rail chassis.
Stability, safety and emergency handling
The low center of gravity ensures optimum machine stability.
The support foot booms are automatically raised as soon as the travel function is selected.
The wheel pressure on the rails is monitored continuously.
Automatic derailment protection.
Emergency exit from the track is possible at any time and is double protected.
Numerous components ensure safe and strong contact between the chassis and rails.
CARSY automatically and continuously maintains the optimum wheel pressure against the rails.

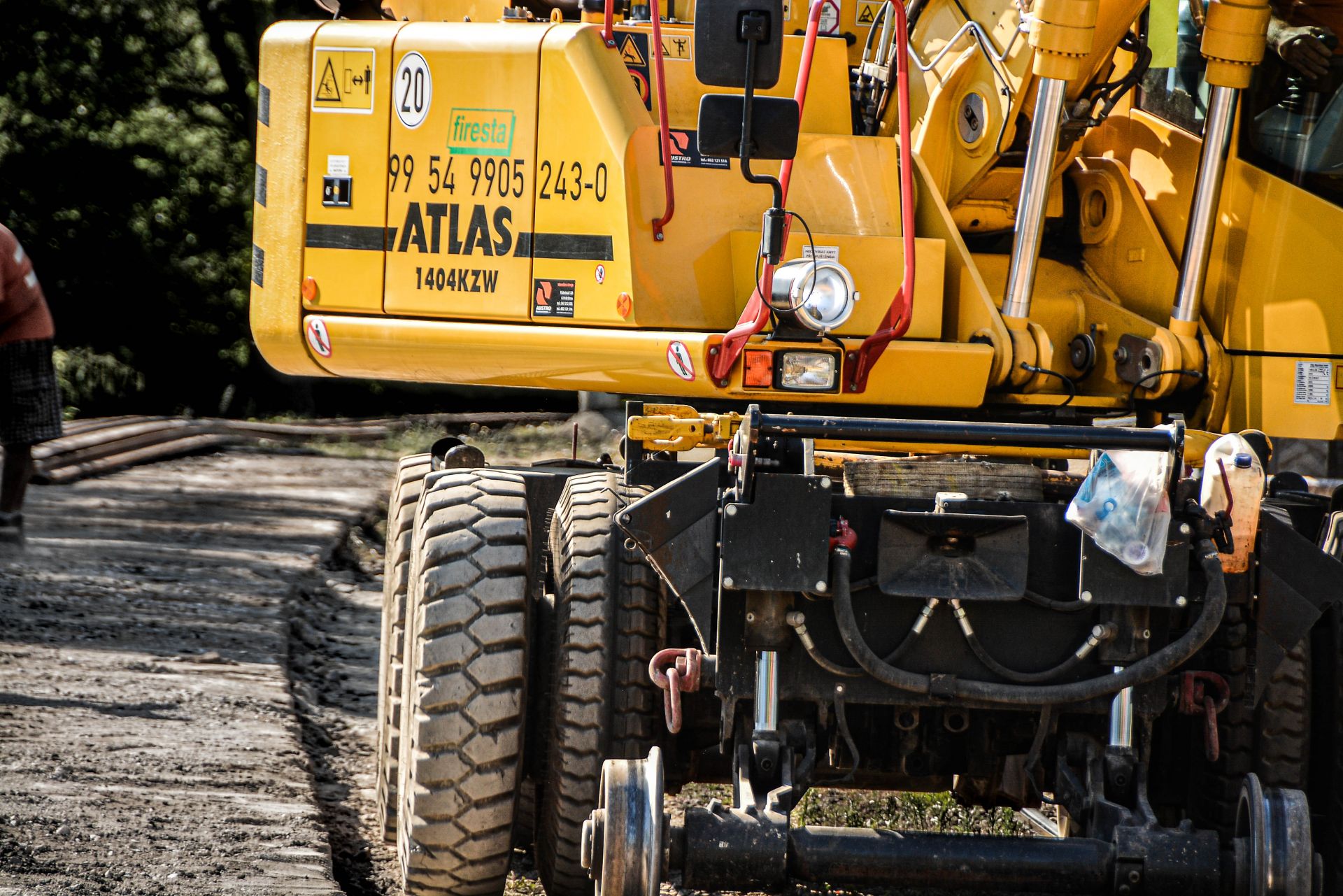

The front and rear rail wheels can be independently operated for easy railing and rolling out and easy crossing of railroad switches.
Automatic self-diagnostics of electronics.
Continuous auto-leveling of the rail axles ensures smooth movement on the rail.
Both with micro travel and maximum travel speed, the excavator maintains high drive torque for fast, safe terrain.
Sensitive steering with power steering on the swinging axle will “iron” any rough terrain into a “straight road”.
